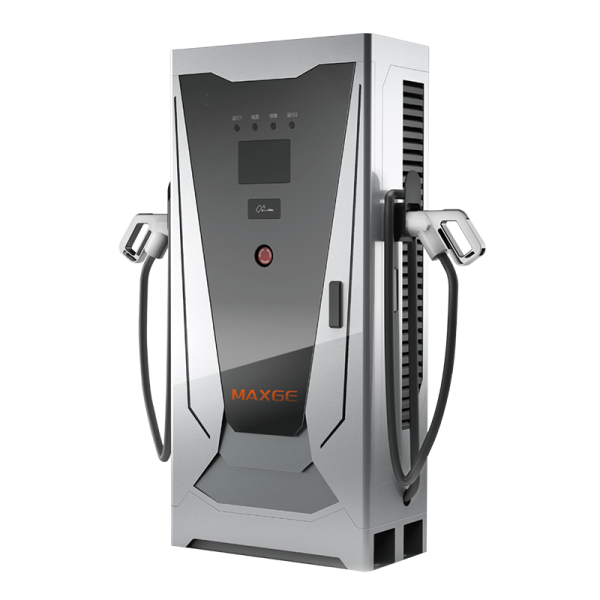

MG11-DC-120kW/180kW

Integrated DC charging stations boast compact designs, perfect for quick deployment in tight spaces like urban corners or highway rest stops. Equipped with 4.3-inch touchscreens, they support card swiping and QR code scanning for easy operation. Their impact-resistant shells and multi-protection systems, paired with active battery monitoring, guarantee safety. With fast charging capabilities and 2G/4G/WiFi connectivity for remote management, they’re ideal for urban fleets, public stations, and highways, meeting diverse EV charging needs efficiently.

  • 120kW/180kW output power
  • 250-280A rated current
  • 7 inch touch screen
  • Swipe card, scan code charging
  • Ethernet, 4G, wifi networking

Product
Description

MG11-DC-120/180kW Charging Station delivers 120/180kW DC output via ​AC380V±20%, 250-260A current. Features a 7-inch touch screen enabling ​card/scan activation via Ethernet/4G/WiFi for billing. Provides over/undervoltage, surge etc. protection per IEC 62196 & SAE J1772. With IP54 rating, wall/floor installation, and -20~50℃ operation, it ensures reliable charging for commercial stations.

To ensure long-term stable operation, systematic periodic maintenance is required: daily clean the casing, remove dust and foreign objects, check displays, charging interfaces and cables for intactness, looseness or damage, and monitor core parameters like voltage and current in real time via the operation system; quarterly focus on verifying protection functions (overvoltage, undervoltage, etc.), test networking module communication stability, and simulate full-process charging to detect hidden issues; annually calibrate metering modules as specified, tighten internal terminals, and replace worn parts such as aging seals and cables. Standardized maintenance ensures safe and reliable operation in various scenarios.

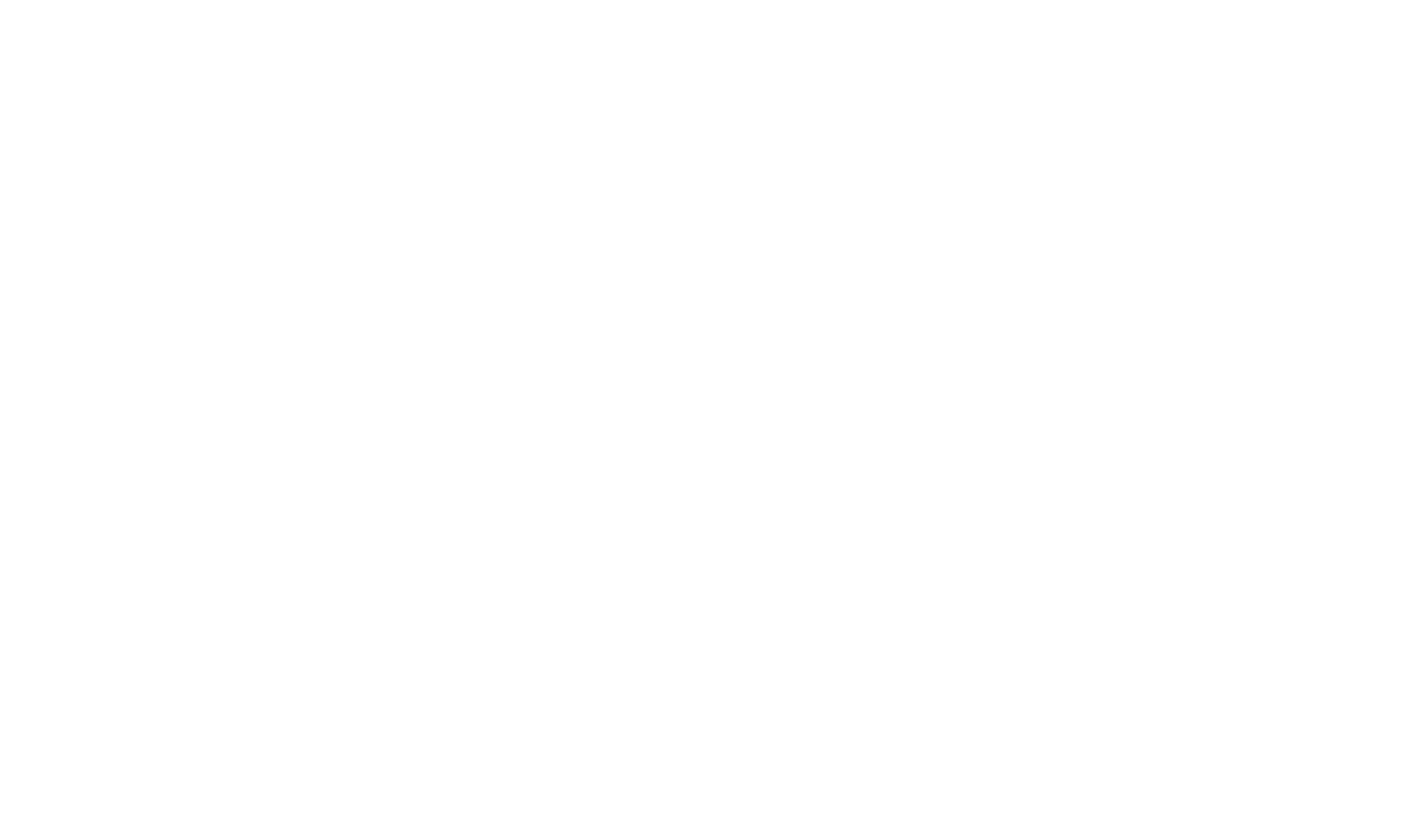

Product Parameter
