MG6-AC-22kW

Wall-mounted AC charging stations feature a user-friendly, space-saving design for easy wall installation, freeing up floor space. Their impact-resistant shells ensure durability against wear and weather. The display supports card swiping and code scanning, simplifying use. With multi-networking, they enable remote management. Safety is ensured via multi-protection, active battery monitoring, and stable constant power output. They support online/offline charging, ideal for public lots, residential areas, and transportation hubs, reliably serving diverse needs.

  • Impact-resistant Shell
  • User Interface:4.3 inch highlight display
  • Networking Mode:2G, 4G, wifi
  • Charging cable length: standard 3.5 meters (optional)
  • Charging method:Swipe card, Scan code
  • Status Indicator

Product
Description

MG6-AC-22kW AC Charging Station outputs 22kW, compatible with 380Vac±20% voltage, 50Hz±10% frequency, and 32A current for efficient charging. A 4.3-inch highlight display supports card – swiping/code – scanning. Ethernet, 4G, WiFi enable offline no – billing, offline/online billing. With multi-protection, meeting IEC 62196, it has an optional 3.5m cable, IP54 protection, Type B RCCB, and wall – mounted design, suiting commercial fast – charging scenarios.

To ensure long-term stable operation, systematic periodic maintenance is required: daily clean the casing, remove dust and foreign objects, check displays, charging interfaces and cables for intactness, looseness or damage, and monitor core parameters like voltage and current in real time via the operation system; quarterly focus on verifying protection functions (overvoltage, undervoltage, etc.), test networking module communication stability, and simulate full-process charging to detect hidden issues; annually calibrate metering modules as specified, tighten internal terminals, and replace worn parts such as aging seals and cables. Standardized maintenance ensures safe and reliable operation in various scenarios.

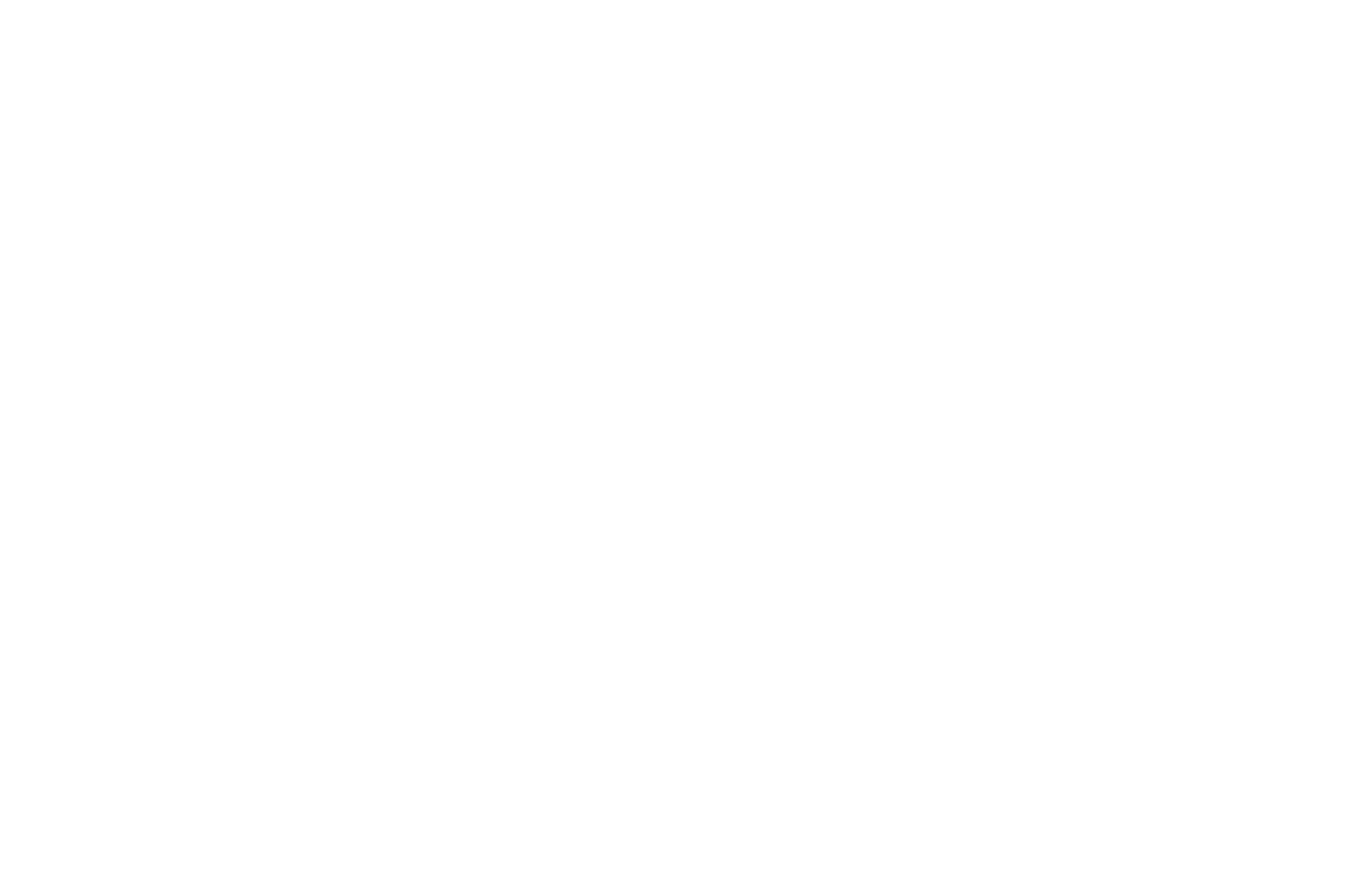

Product Parameter
