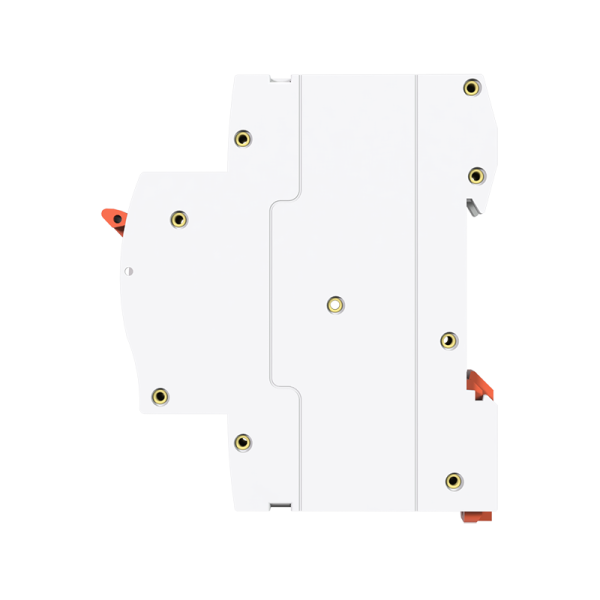

SG-DPN

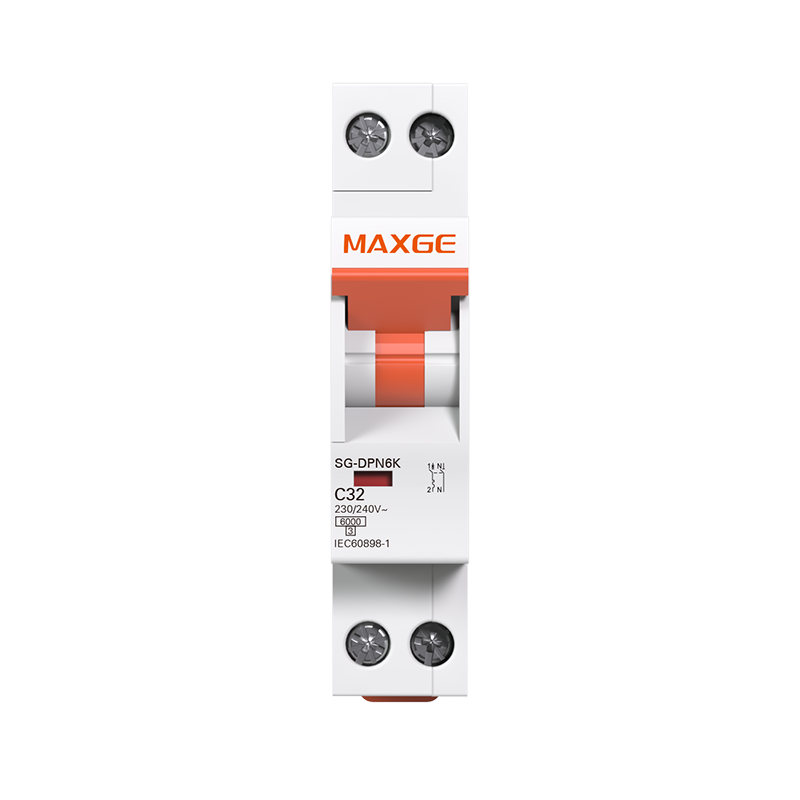

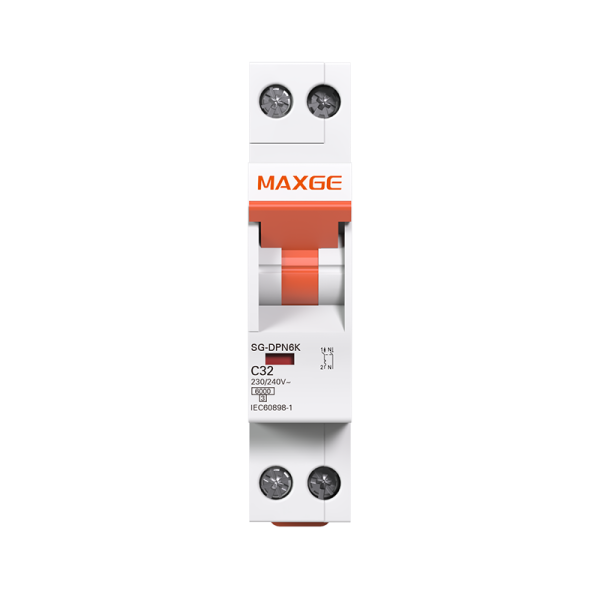

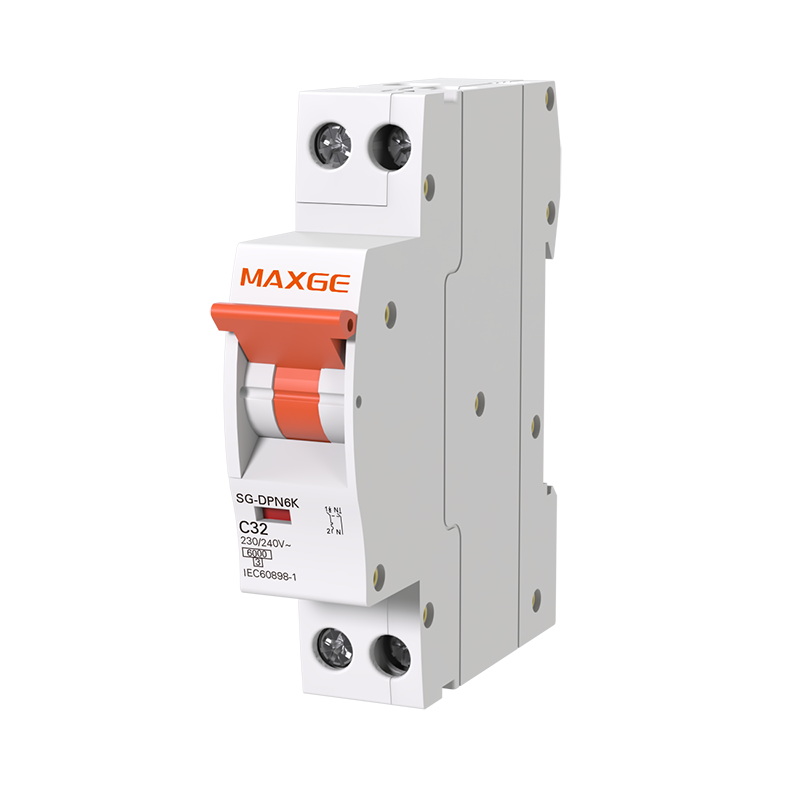

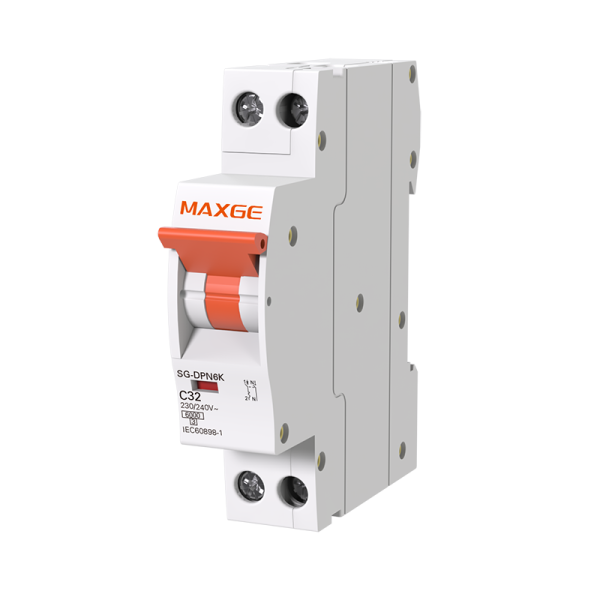

The Alpha+ series of miniature circuit breakers is a star product series of MAXGE that has been tested in the market for 15 years. This SG-DPN series miniature circuit breaker, with rated current up to 32A and 1P+N in 18 mm width, can be easily integrated into the power distribution system. High breaking capacity up to 6kA, protecting power safety. Switched neutral and efficient. The product has obtained VDE and CE certification. Excellent quality, safer electricity use.

  • Neat Appearance
  • Visualization Window
  • Flame Retardant Material & Thermoset Shell
  • Clear Parameters
  • Stable Installation
  • Fork type bus-bar interface

Product
Description

The miniature circuit breaker is mainly suitable for terminal power distribution circuit of commercial office buildings, residential buildings and general industrial purposes with AC 50Hz, rated voltage up to 400V, and rated current up to 63A, providing overload and short-circuit protection for the circuit. The circuit breaker adopts modular design, and has the characteristics of exquisite and beautiful appearance, reliable performance and high breaking capacity.

The circuit breaker should be checked regularly during operation. After the circuit breaker breaks the short-circuit current, the fault should be eliminated first. When the circuit breaker is restored to open and close the circuit, the load should be disconnected first, and then the circuit breaker should be closed/opened: The circuit breaker should select the appropriate current specification, tripping type and copper wire cross-sectional area according to the load power.

Product Parameter
