DC Molded Case Circuit Breakers are mainly used for protecting circuits and power supply equipment in DC systems from faults such as overload and short circuit, while also distributing electric energy. They work by utilizing internal mechanisms to detect abnormal currents; when overload or short circuit occurs, the contacts quickly separate to cut off the circuit. Being non-polar with wiring possible from both above and below, they offer convenient installation and reliable protection for relevant DC electrical systems.

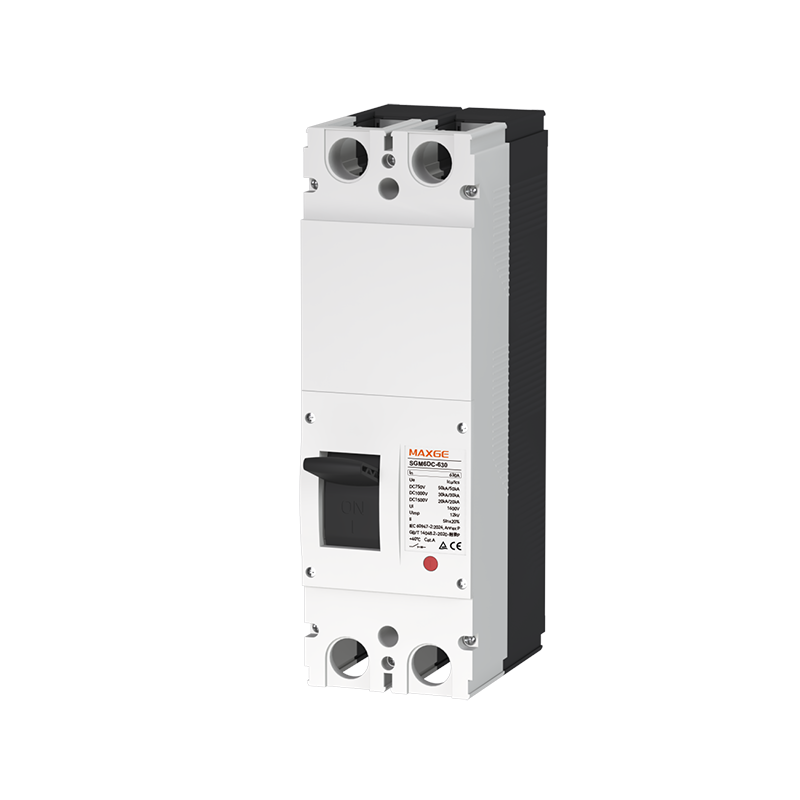

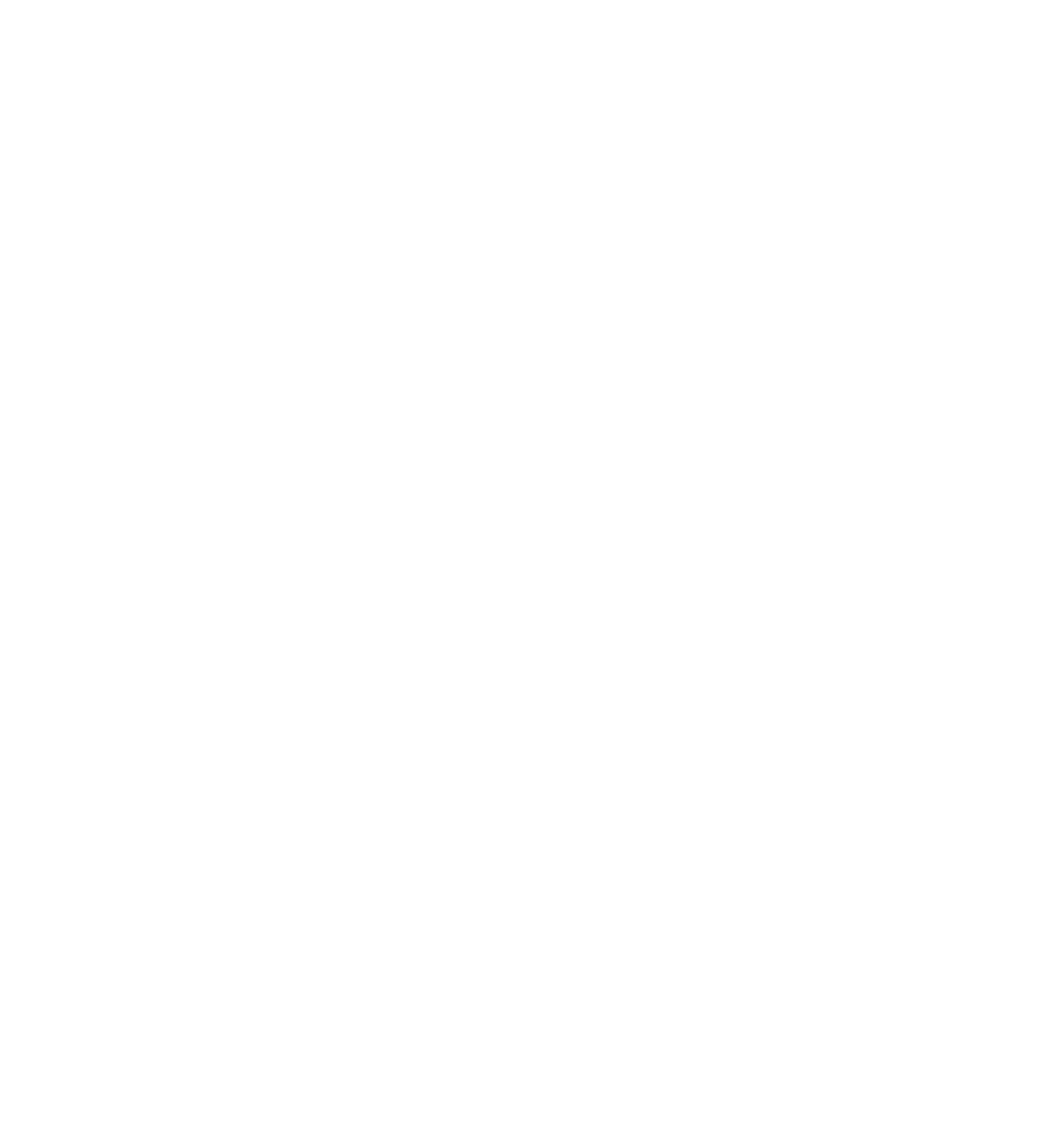

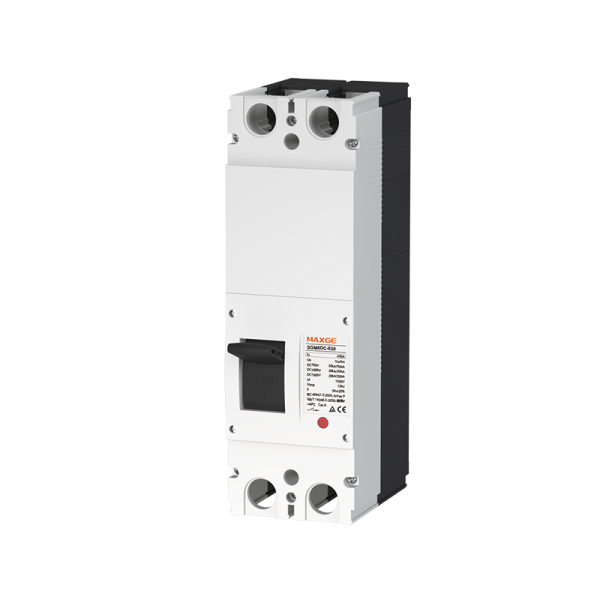

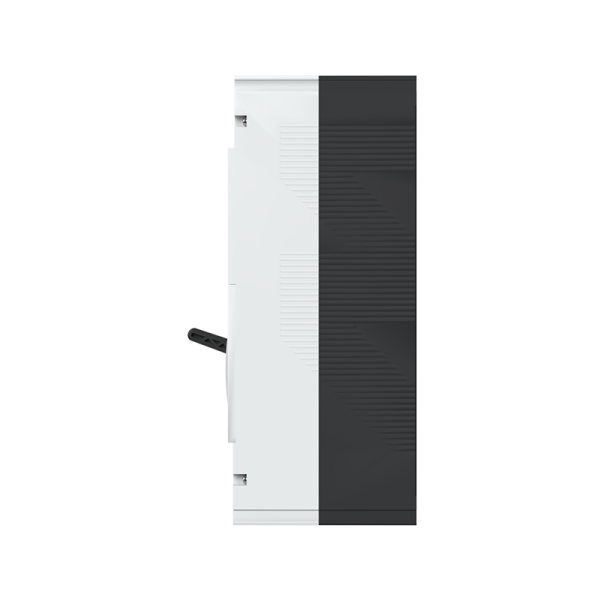

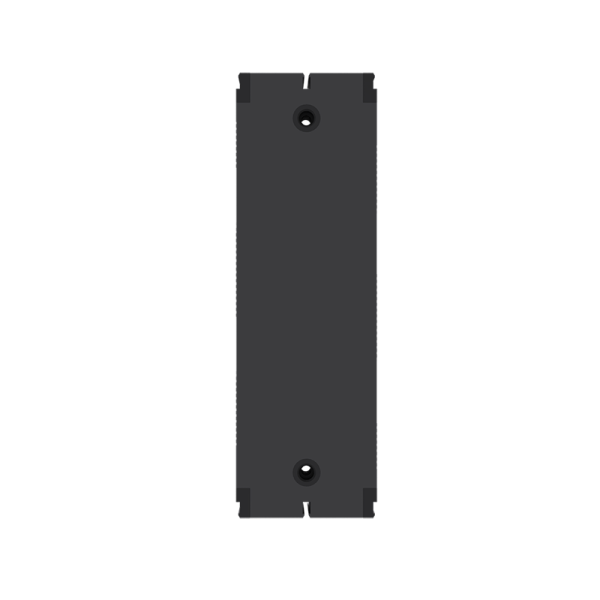

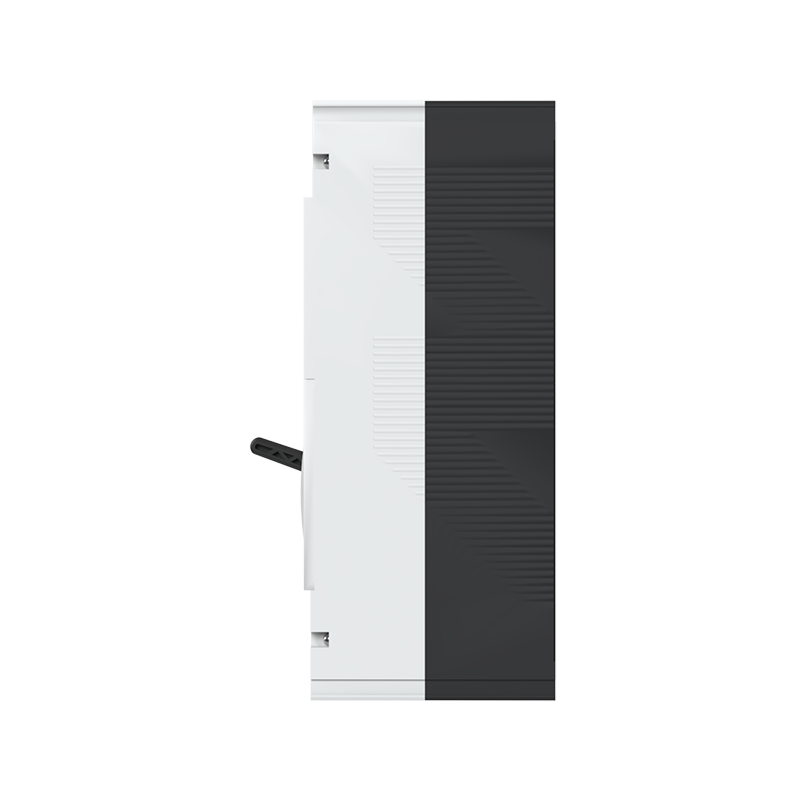

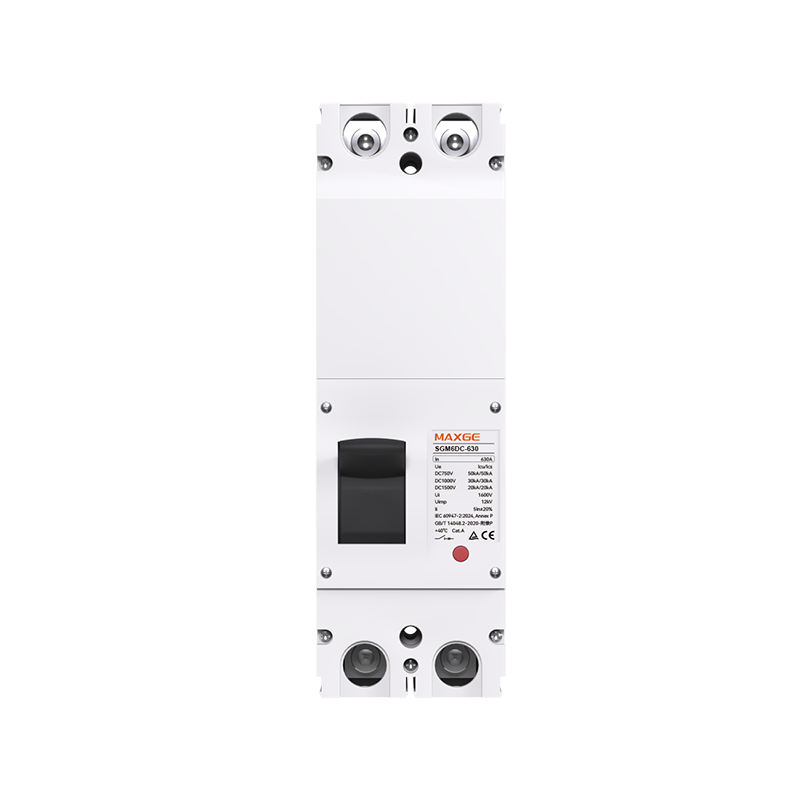

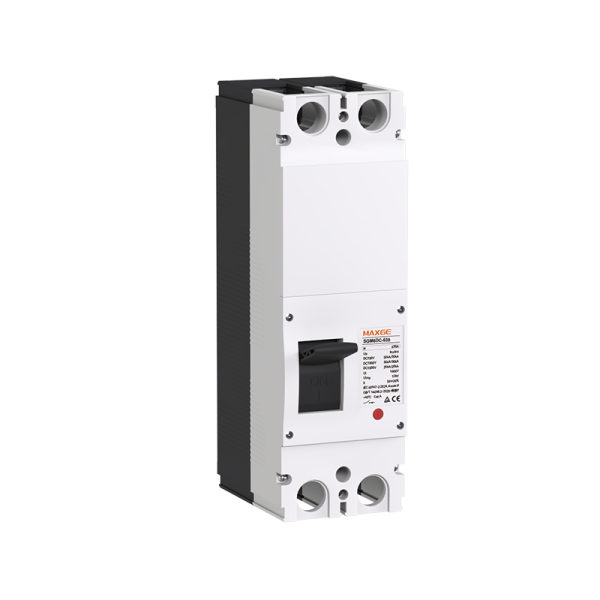

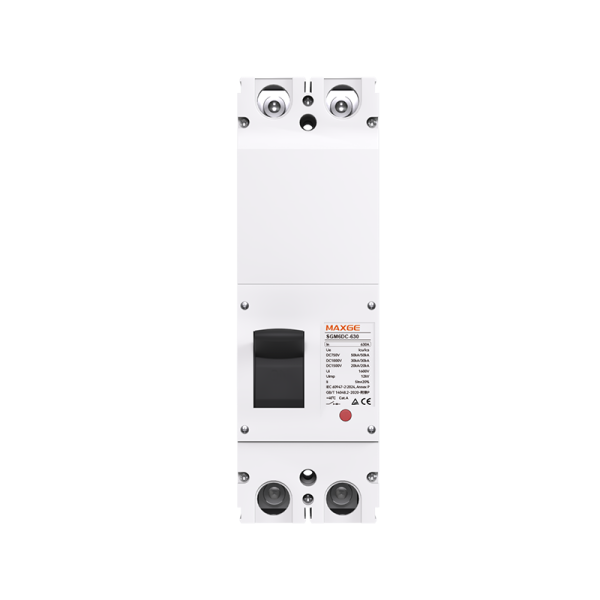

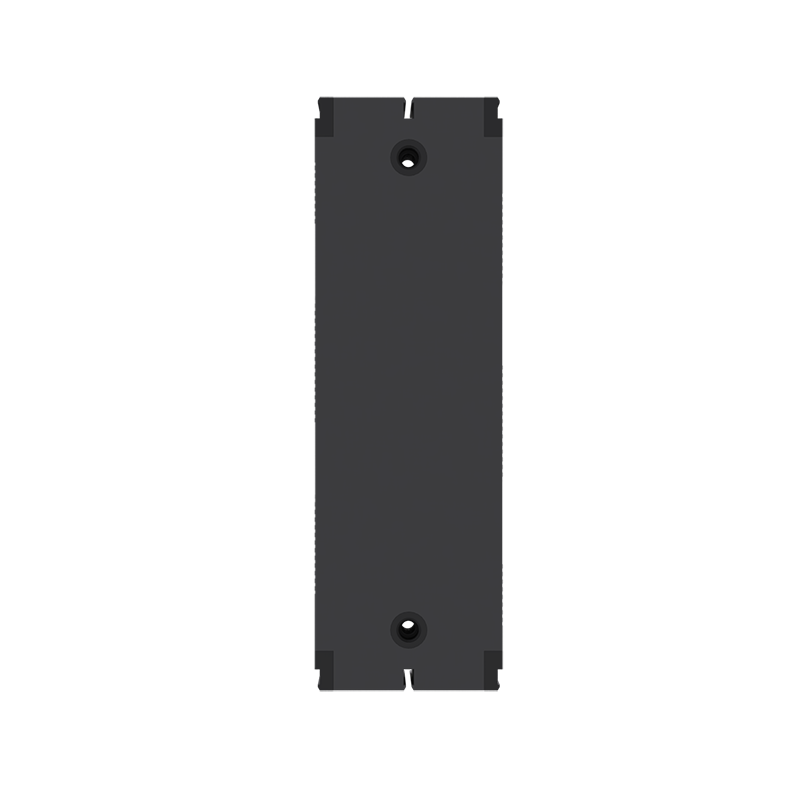

The SGM6 DC-630 MCCB covers a frame size of 630A and complies with IEC60947-2. It features a rated insulation voltage of 1600V and an Icu breaking capacity of 20kA at 1500V, ensuring reliable protection suitable for its frame size. This model is non-polar and allows wiring both from above and below. It offers a rated operational voltage of 1500V and supports effective protection for relevant electrical systems.
To ensure long-term reliable operation of the DC Molded Case Circuit Breaker, follow strict maintenance protocols: Before work, disconnect power and verify de-energization while wearing insulated gear. Inspect the housing for cracks or damage in dry conditions; tighten terminals to manufacturer specs with a torque wrench. Operate the handle 5+ times to verify smooth switching and trip reset. Check the non-polar wiring connections to ensure they are secure. Clean the device with dry tools to remove dust and debris. Maintain annually under normal conditions or every 6 months in humid or dusty environments, with immediate checks after faults. Record all maintenance data for future reference.
