SGS1-40DC

Surge Protective Devices (SPDs) serve as the primary defense against transient overvoltage surges in power grids, engineered to intercept kilovolt-level transient voltages induced by lightning strikes or switching operations. Their core function leverages voltage clamping and energy diversion mechanisms to channel hazardous surges into grounding systems within nanosecond-level speed, ensuring terminal voltage of downstream equipment remains stabilized within safe thresholds.

  • Compliant with EN 50539-11
  • Wide temp range -40℃~+70℃
  • 40kA max discharge current, graded protection levels
  • Clear status: green=normal, red=replace

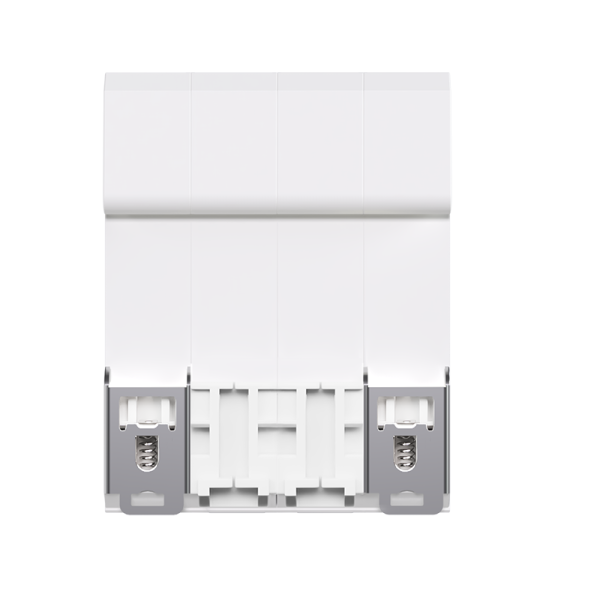

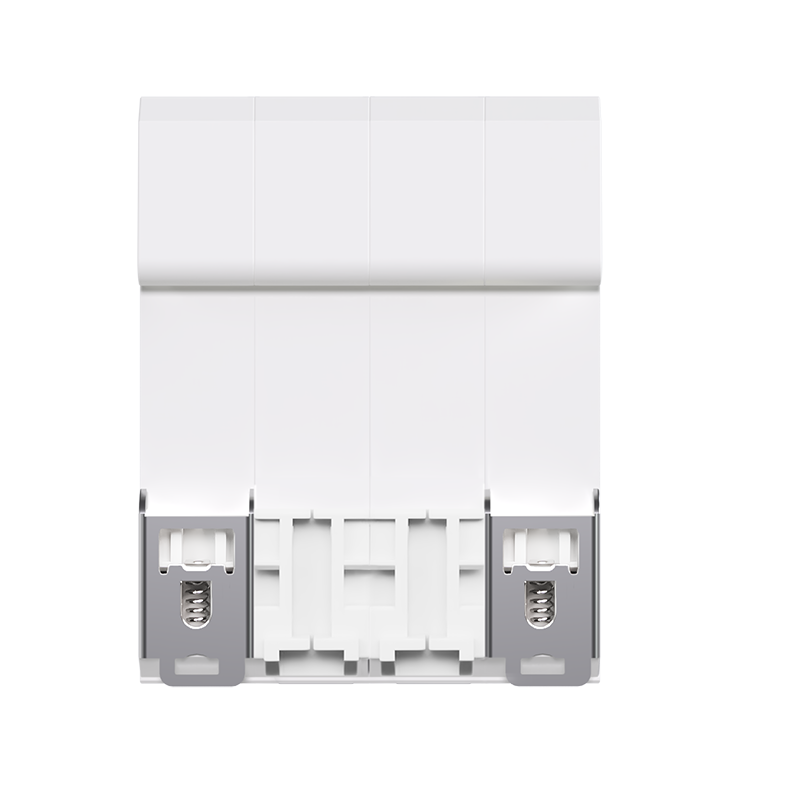

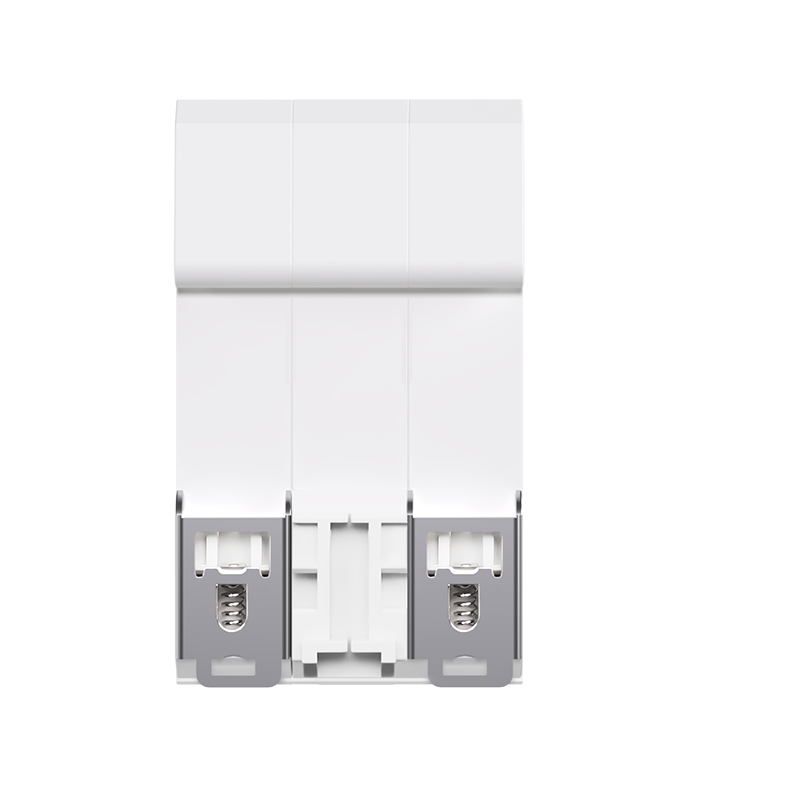

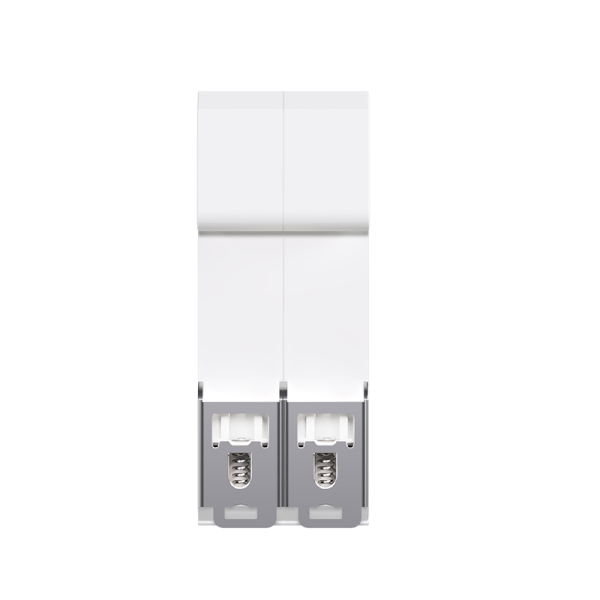

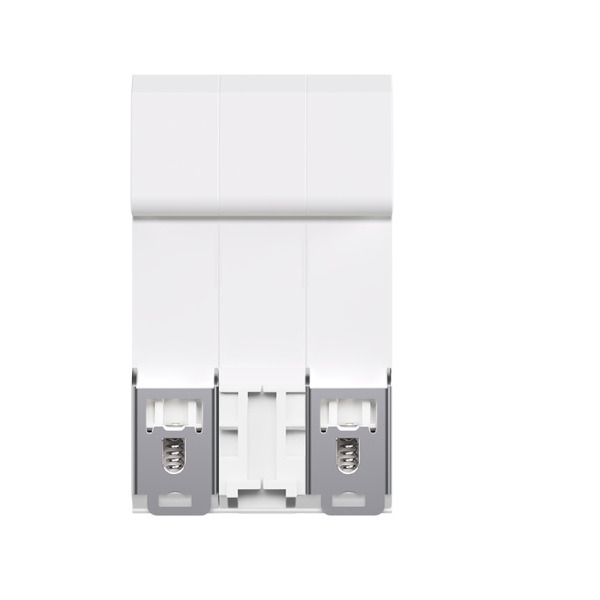

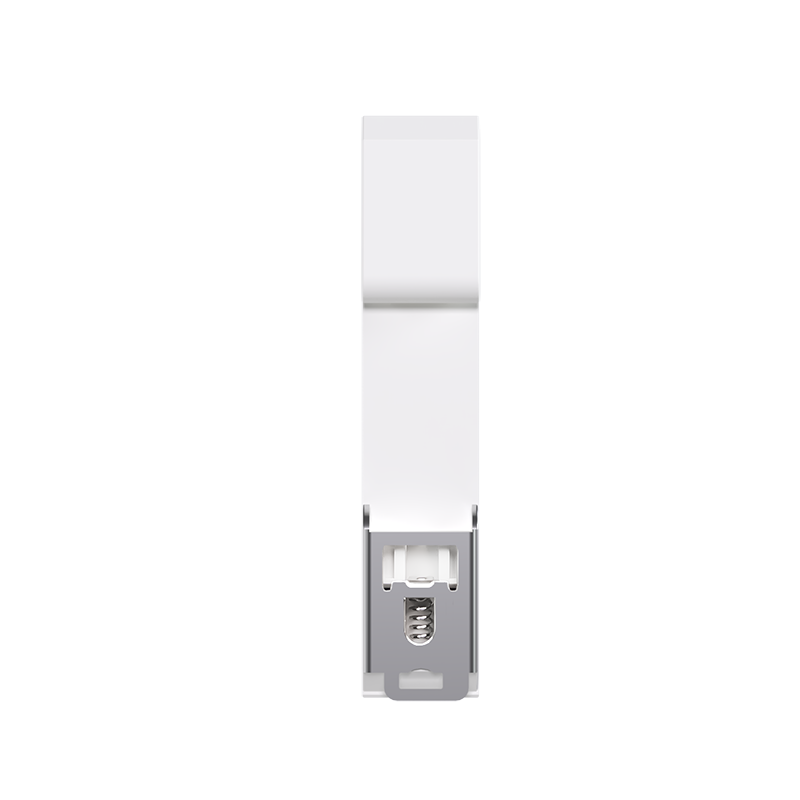

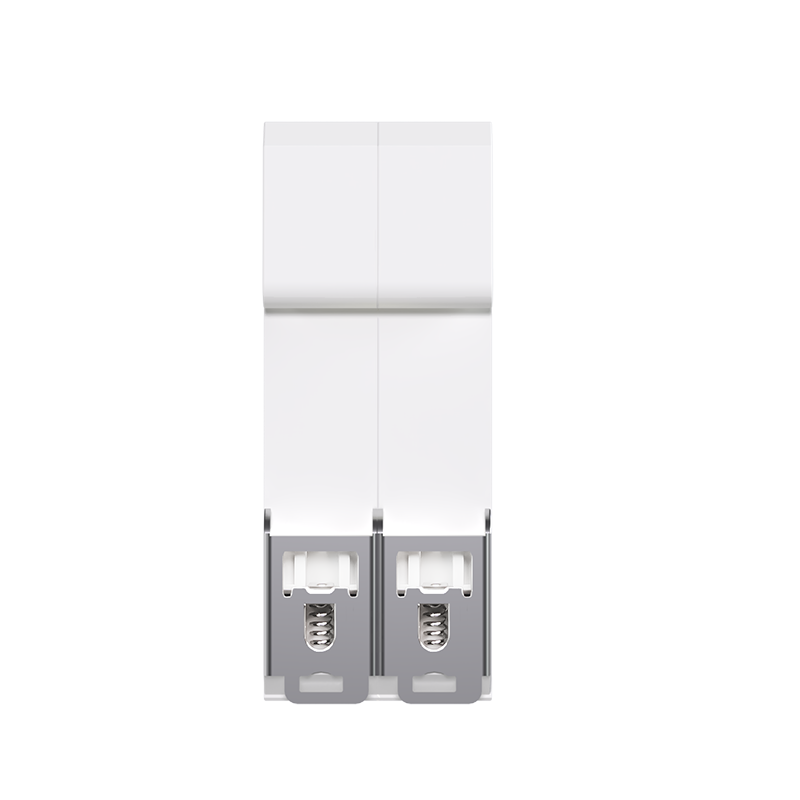

  • Easy 35mm DIN rail installation

Product
Description

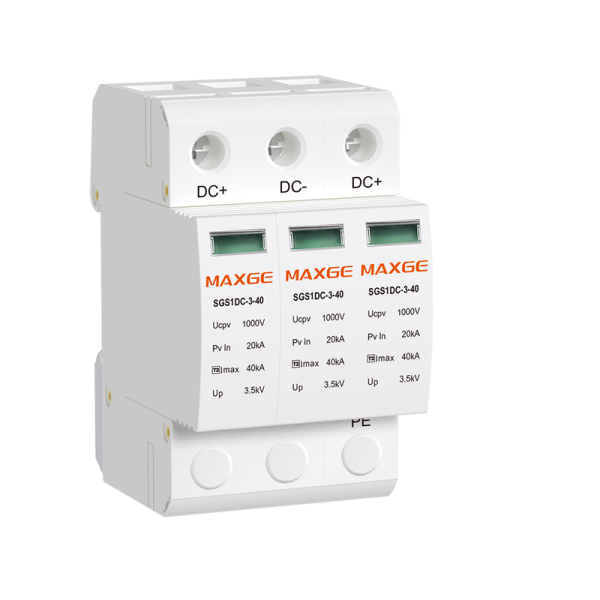

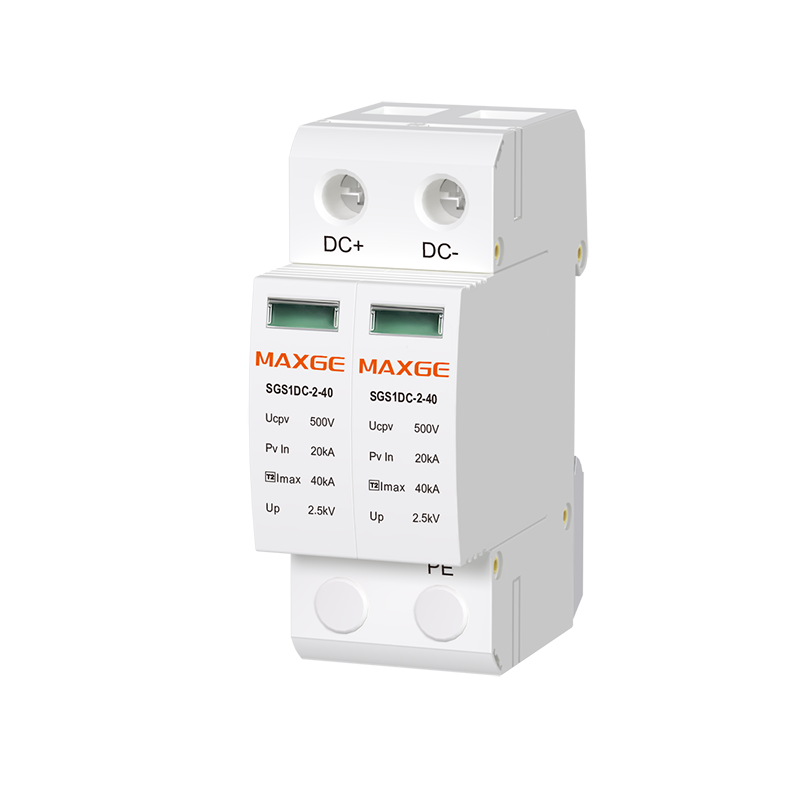

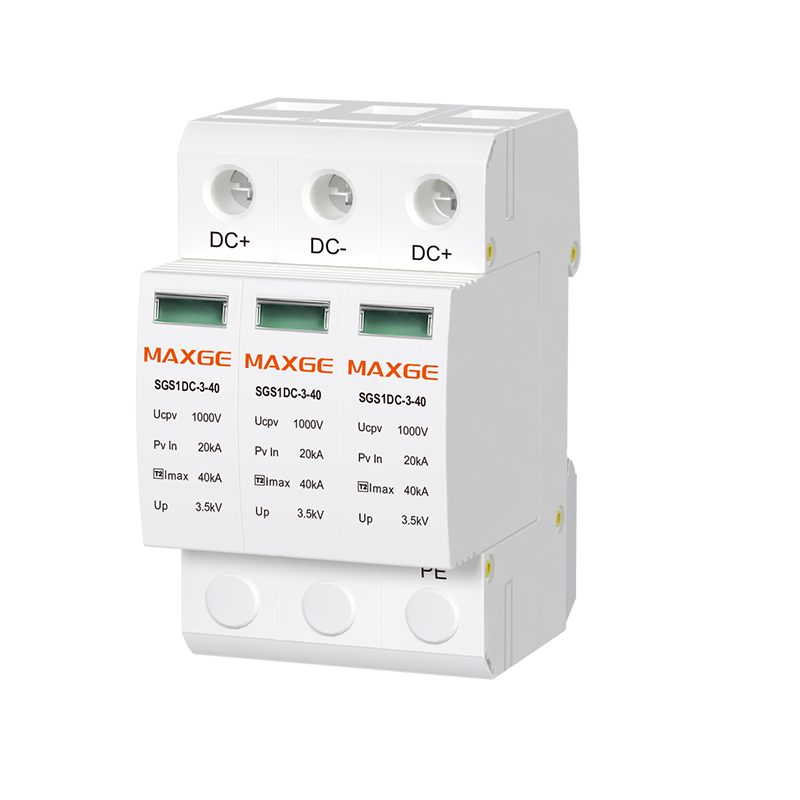

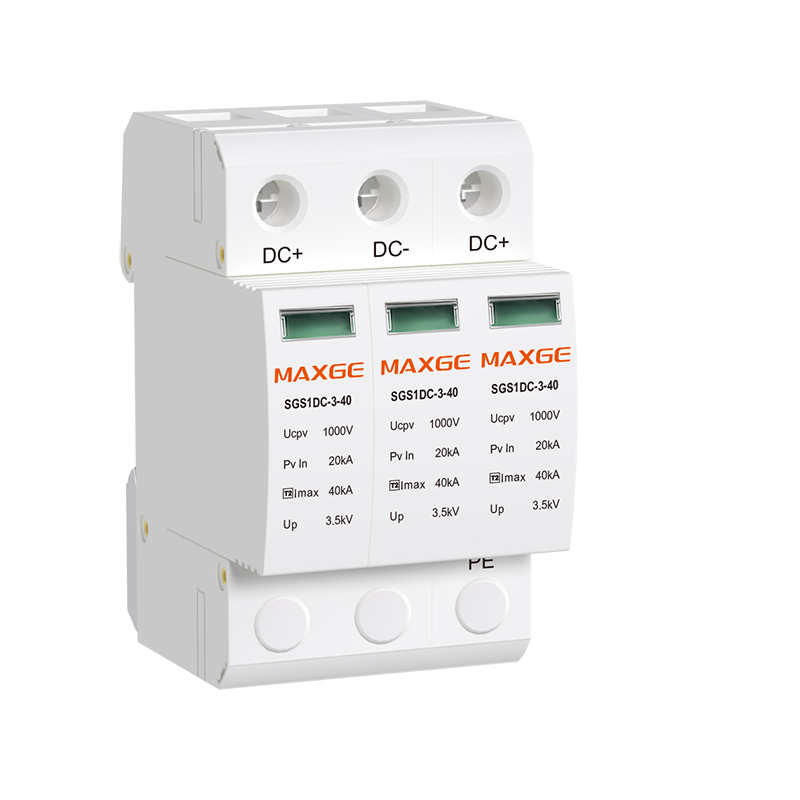

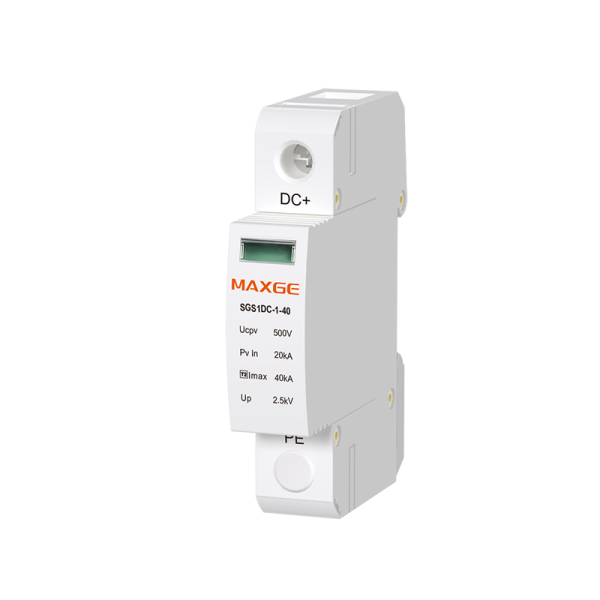

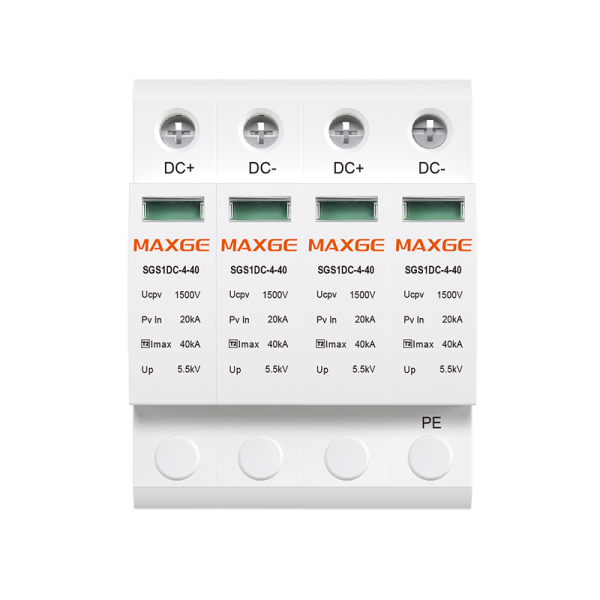

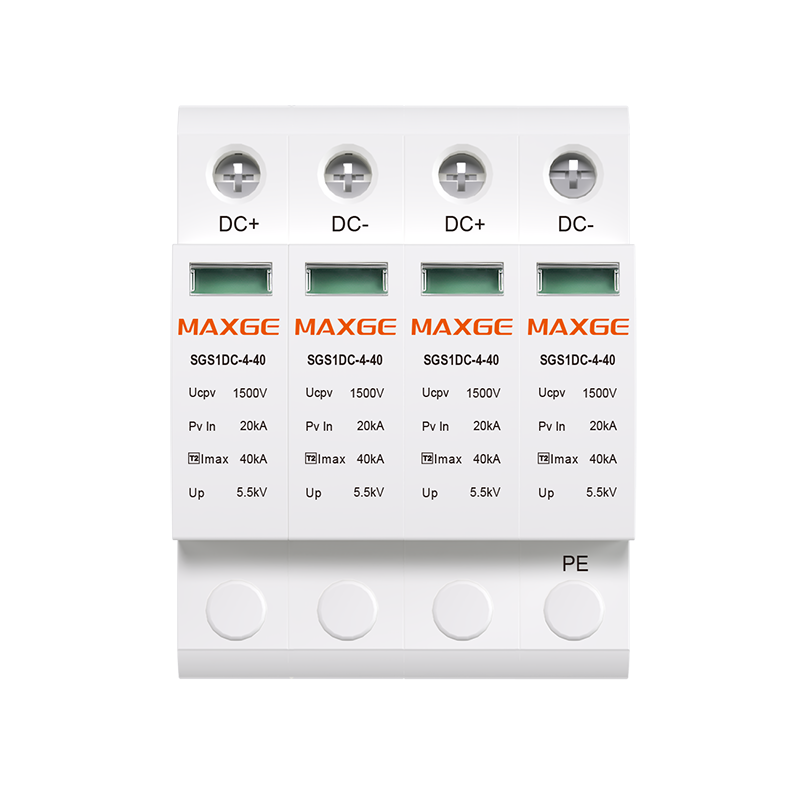

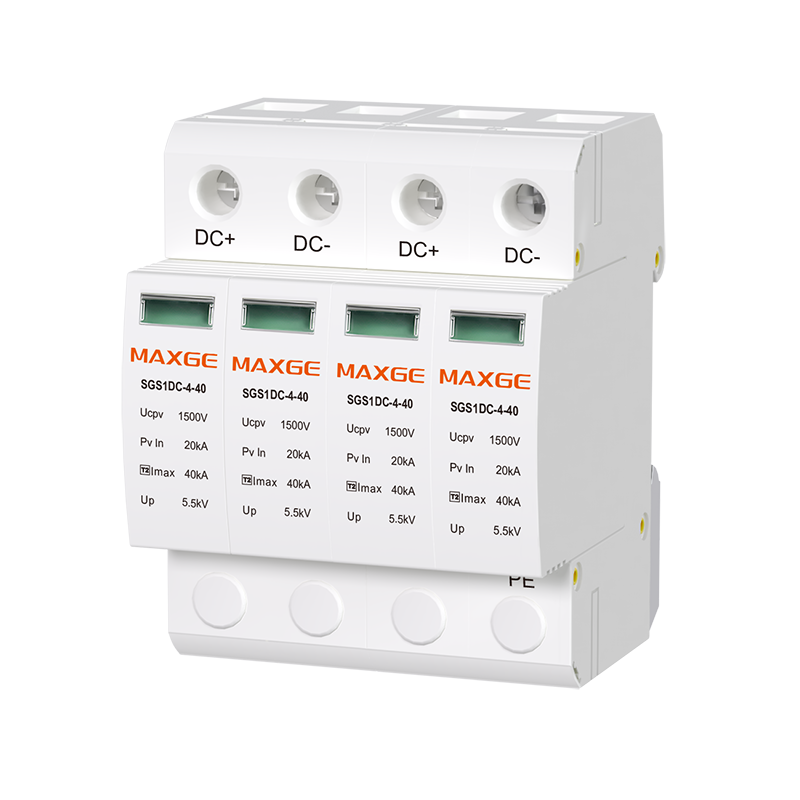

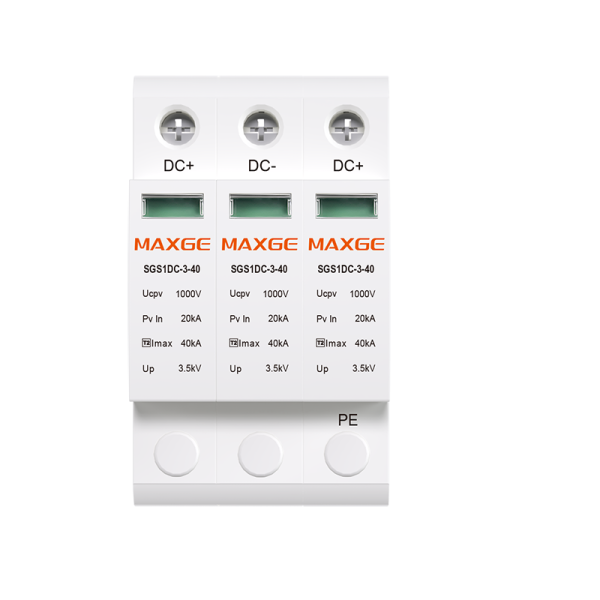

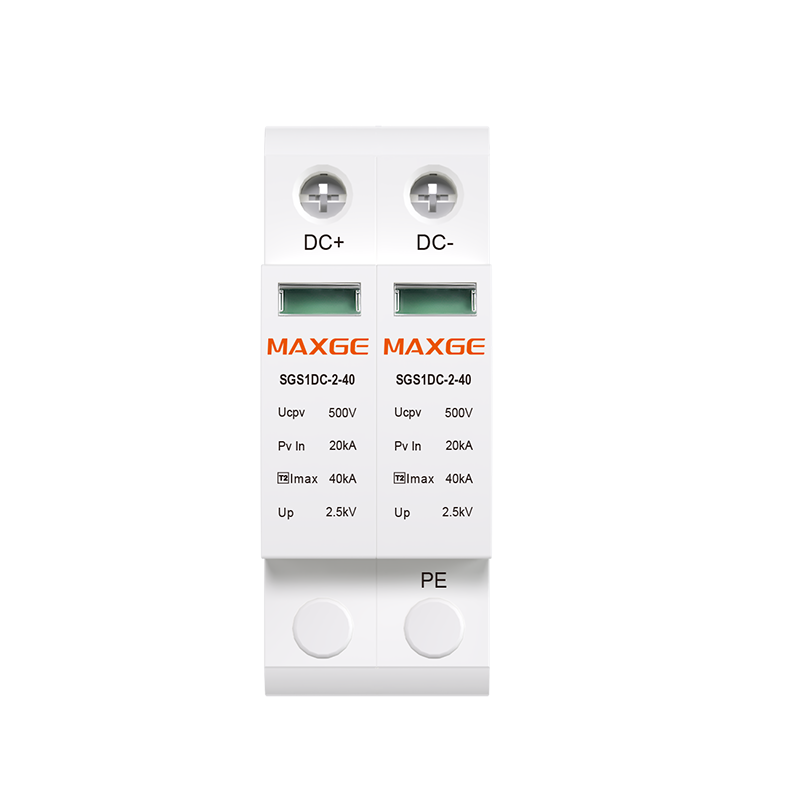

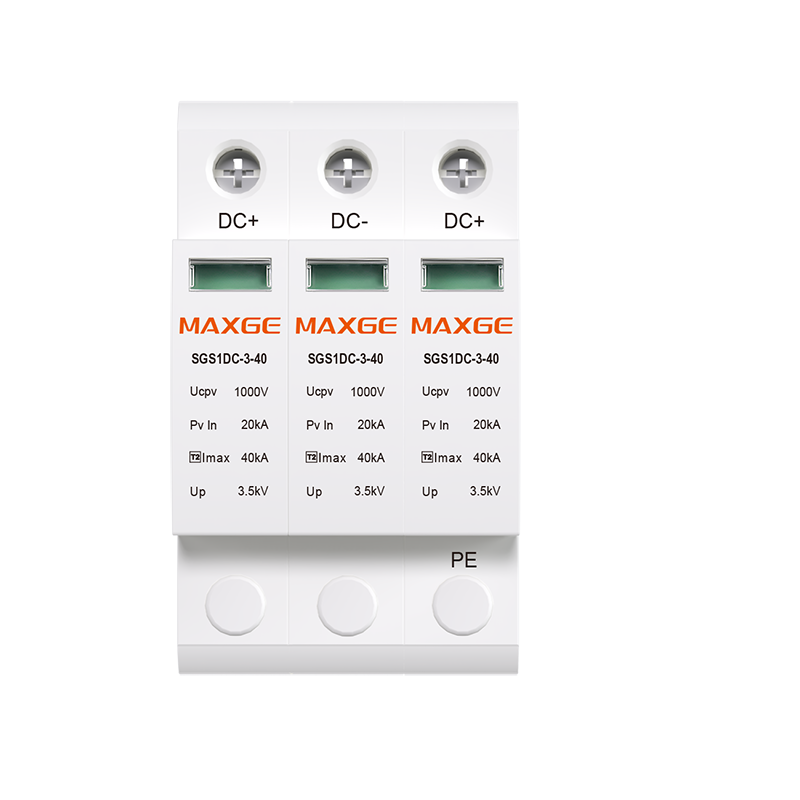

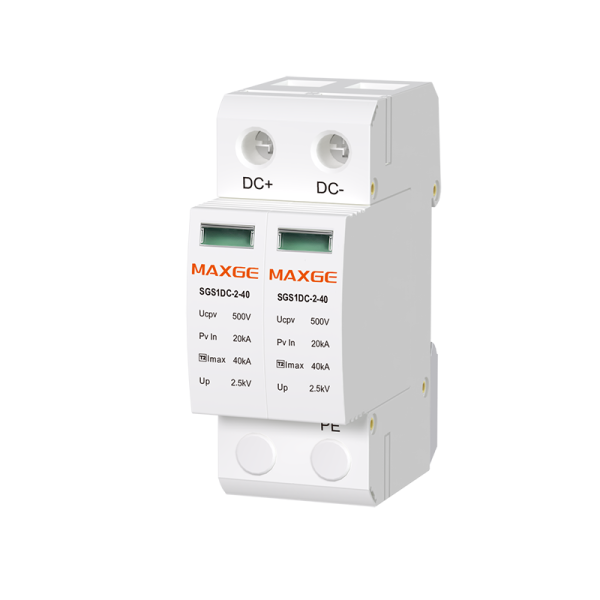

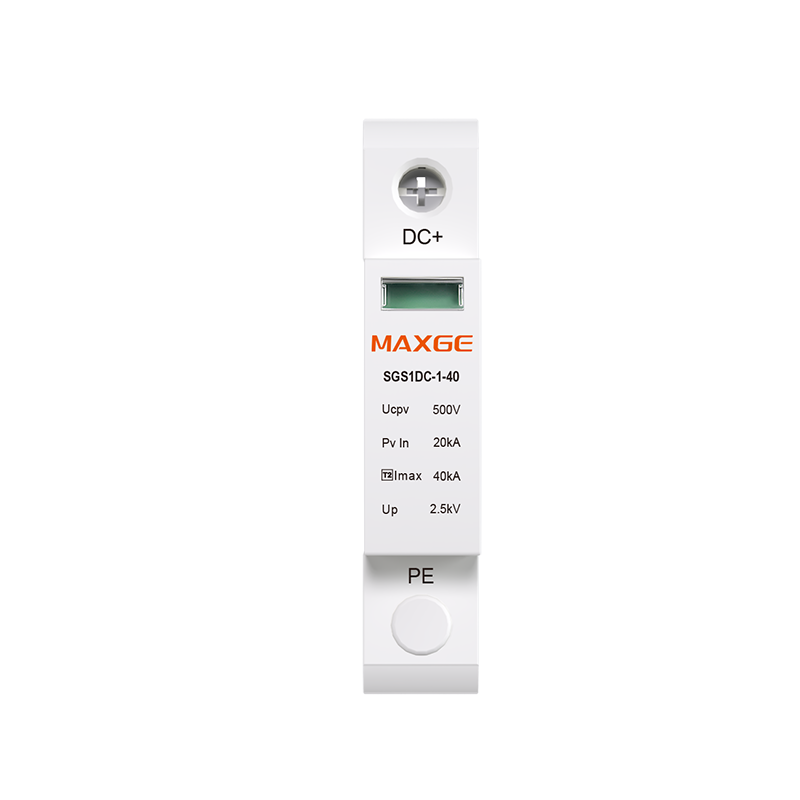

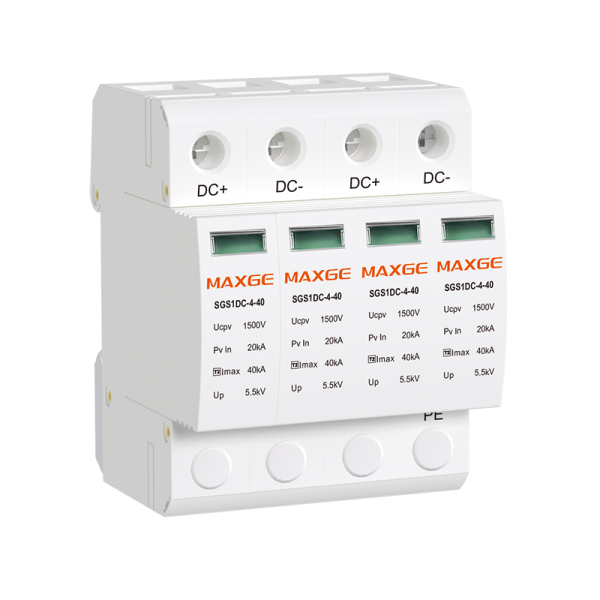

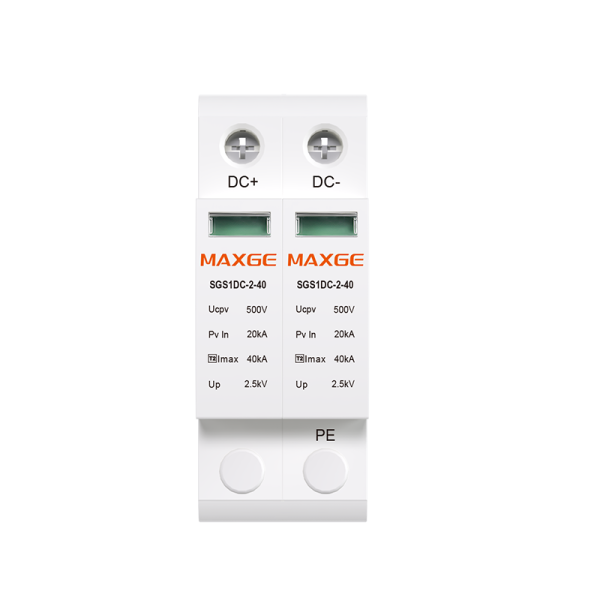

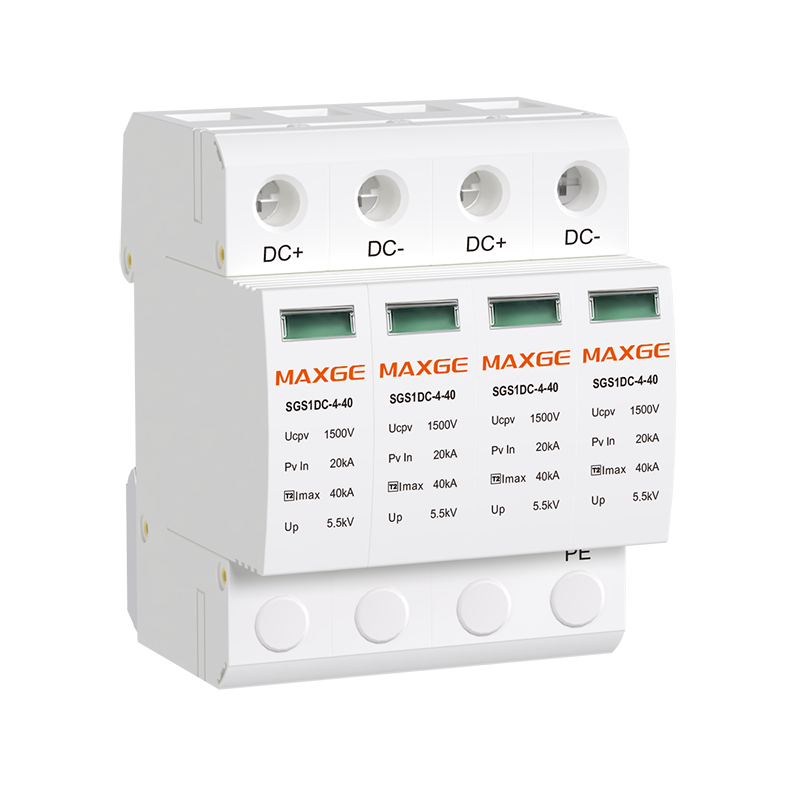

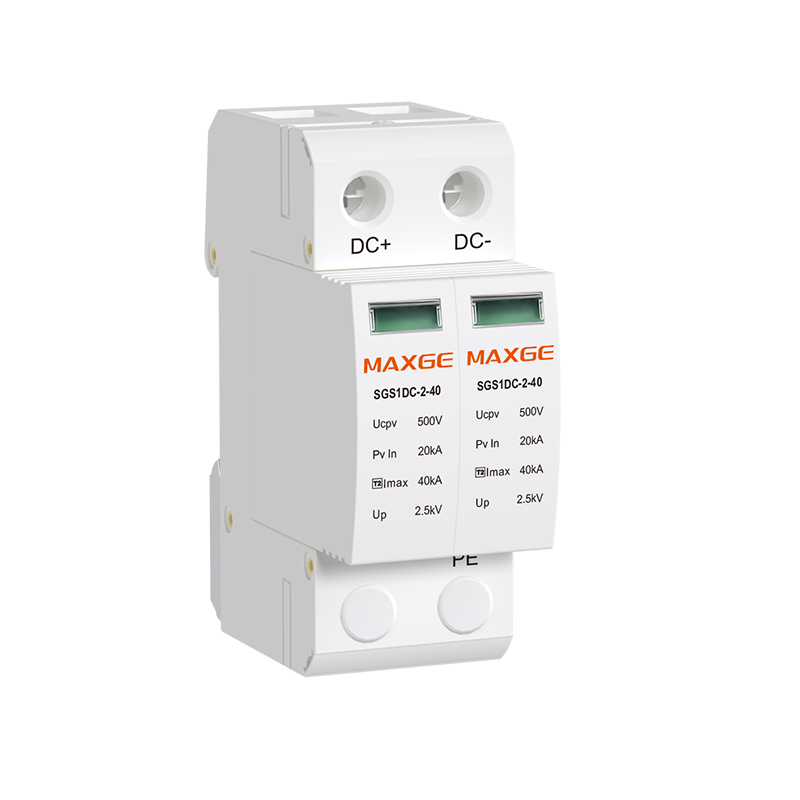

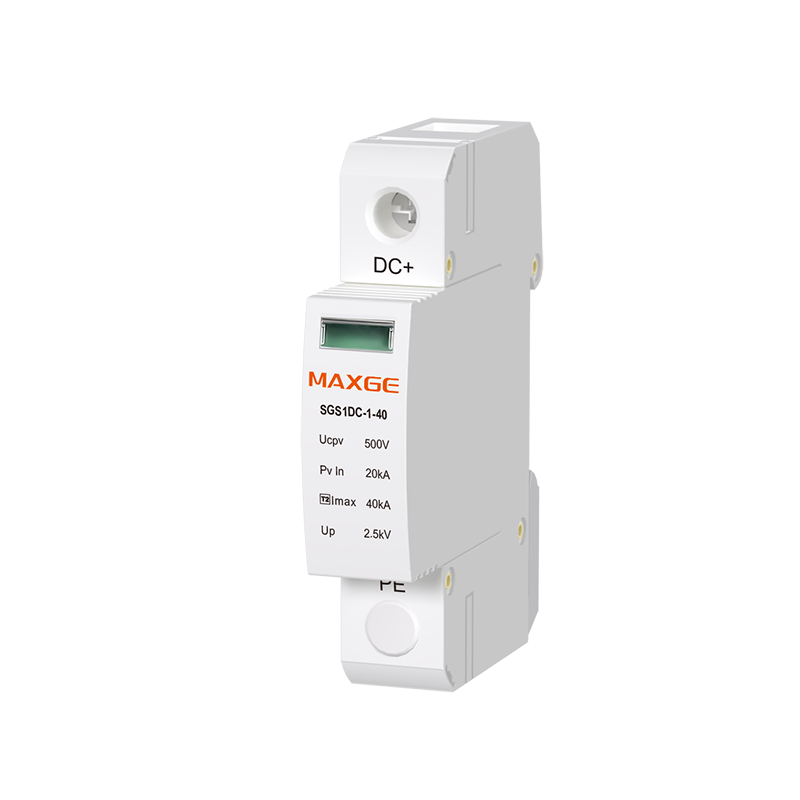

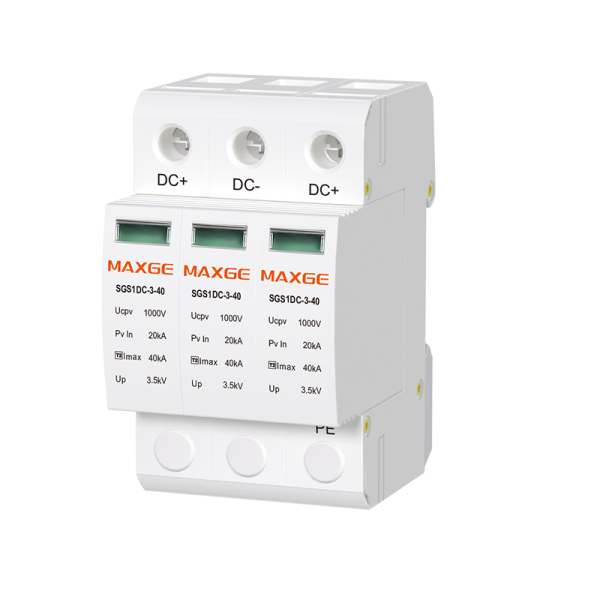

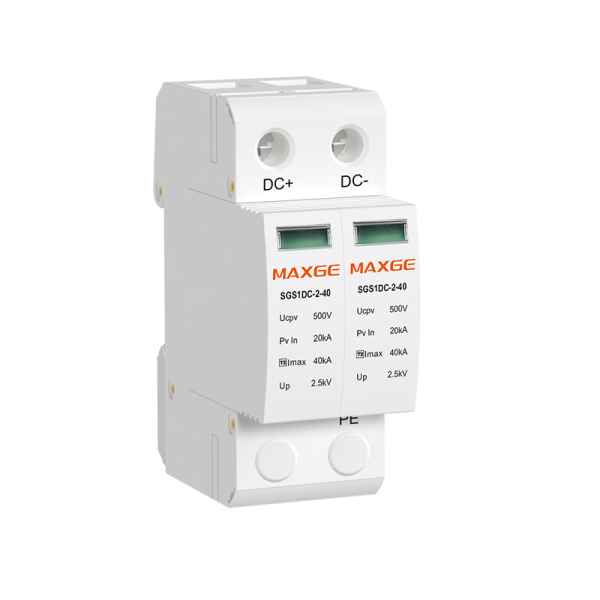

SGS1-DC Series Surge Protective Devices comply with EN 50539-11, protecting systems and appliances from thunder and over-voltage. Available in 2P/3P, they support 500V/1000V/1500V DC, with 20kA standard and 40kA max discharge current. Protection level Up is ≤2.5/3.5/5.5 Uc (for 500/1000/1500V DC), response time <25ns. Features green/red status indicators, pin terminals for 35mm DIN rail installation, -40℃~+70℃ operation, and TUV certification.

To ensure long-term stable operation, systematic periodic maintenance is required: monthly check status indicators (green normal, red failure) and enclosure temperature under 60℃; quarterly clean dust with dry tools only and inspect for cracks or arc marks; annually test electrical performance (insulation resistance over 1MΩ, leakage current under 1mA, residual voltage under 1.5kV) and grounding (resistance under 4Ω, terminal tightness), and calibrate environment (temperature -40°C to +70°C, humidity under 80%). Replace with OEM modules immediately after over 10 surges, over 5 years (standard) or 3 years (high-lightning/coastal areas), or MOV/GDT degradation. No disassembly by non-professionals. Record data and replacement dates per IEC 61643-11/GB 18802.1 for continuous protection of industrial power and renewable systems.
